24-bit,48kHz sampling rate,∑-△ AD / DA convertor,32 bits DSP chip.
Input processing includes Gain, Mute, Noise gate, high-cut, low-cut, 8 parameter EQ, Phase, Delay and so on (PRO-480 without Hi-cut Low-cut And PEQ)
Output processing includes crossover , 5 parameter EQ,Gain, Mute, compressor/Limiter, Phase, Delay and so on
Every input and output can do matrix assign flexibly
Adjustable PEQ frequency, Gain and bandwidth; we can choose style: PEAK、H-SHELVE、L-SHELVE
We can choose the style of all High-cut , Low-cut filter and Distributor unit: Butterworth、Linkwitz-Riley、Bessel;Choice slope is from -6dB/Oct to -48dB/Oct
Adjustable compressor / limiter threshold, ratio, attached time and release time
Adjustable threshold, attached time, release time of all noise gate
All delay module's delay time can reach over 682ms
Parameter setting of every channel can copy freely
Interput signal tester,output can choose pink noise,white noise , 20Hz-20kHz adjustable sine wave and adjustable signal range
2×20 word LCD , light and key-press incorporate design, unique one key-press process method, bring the users with convenient and rapid operating
32 user preset; status and every preset can save and adjust separately, with code protecting function
With PC , we can do remote control by USB and RS232 connector
256 units linkable by RS485, and do remote link controlling by center-control equipment

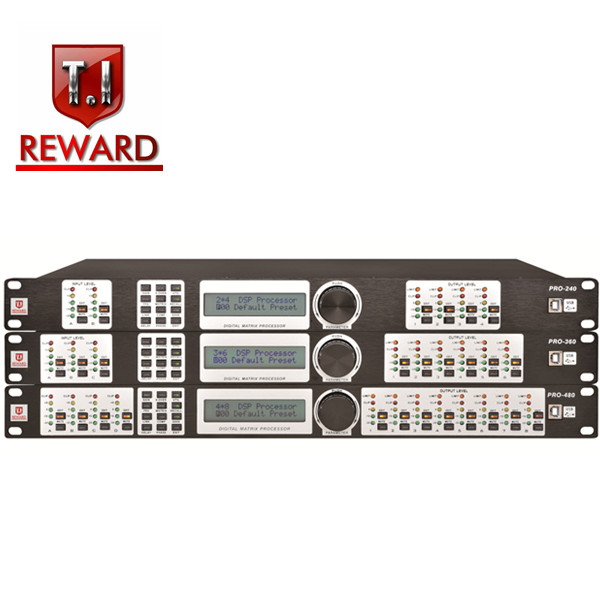

Model | PRO-240 | PRO-360 | PRO-480 |
Configuration | 2 in 4 out | 3 in 6 out | 4 in 8 out |
Power Supply | AC 110V/220V 50Hz/60Hz | AC 110V/220V 50Hz/60Hz | AC 110V/220V 50Hz/60Hz |
Product Dimension | 482×232×44mm(HxWxD) | 482×232×44mm(HxWxD) | 482×232×44mm(HxWxD) |
Shipping Dimension | 605×310×110mm (HxWxD) | 605×310×110mm (HxWxD) | 605×310×110mm (HxWxD) |
Net Weight | 4.1kg | 4.1kg | 4.1kg |
Gross Weight | 5kg | 5kg | 5kg |
