LA-12 is a bi-amps, line array system which is made of one 12＂, one 3＂titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. It is a zero interfere line array with multi- speaker combined to produce accurate directivity and maximum dynamic impact. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. T-12 is a compact line array enclosure designed to bring superb line array performance to large stadiums, big outdoor concerts and commercial events. The switchable one or bi-amplified two way cabinet is very efficient, It meets the need for a high power, high bass impact system that is versatile and scalable for a very wide range of applications in the live sound, corporate and fixed installations.
| Model | LA-12 |
| Type | Array system |
| Frequency Response | 55Hz－20kHz±3dB |
| Power handling | 400W(RMS)800W(PEAK) |
| Sensitivity | 100dB(1W@1M) |
| Max@S.P.L | 126dB(PEAK/1M) |
| LF section | 12"(310mm) woofer 75mm(3in)coil |
| Nominal impedance | 8 ohm |
| HF section | 1×3＂compression driver 44mm titanium diaphragm |
| Nominal impedance | 8 ohm |
| Output section | 2-channel |
| Dispersion pattern | 110°H×5°V |
| Finish | Black paint |
| Speaker cables | Passive 1(+),1(-). Built in
crossover
Bi-AMP LF 1(+),1(-)
HF 2(+),2(-) |
| Input connectors | 2×NL4MP speakon |
| Dimensions | 355×593×434mm(W×H×D) |
| Package dimensions | 425×660×505mm/0.14cbm |
| Enclosure | Brich Plywood |
| Net weight | 28kg |
| Gross weight | 31kg |
Company Profile
T.I Reward Audio CO.,LTD is a global designer, manufacturer and distributor of high quality pro audio equipment, our production line including indoor outdoor line array speaker, pa speaker, pro subwoofer, monitor speaker,power amplifier, processor and wireless microphones. OEM and customized service is well provided for our customers.
We focus on new audio technology, fashion appearance, market flexible structure research. Our PA products in pursuit of high technology, fashion, plasticity characteristics.
Over 20 years of technical experience of our sound engineers are the foremost guarantee to all of our operation. Our electro-acoustic professionals and staffs are working for the company dedicatedly and energetically. Insistent training with serious, systematic and sophisticated QA concept to our staffs had built up solid foundation to our quality as well as to our success in the industry.
T.I Reward audio products ideal for rental market, installation market for events, multimedia, musicals, concert halls, theatres, church and other application …We never stop the music. We can easily meet all requirements for clients in quality, price and box design. Browse & our products & contact us for professional help and advice .
|
|

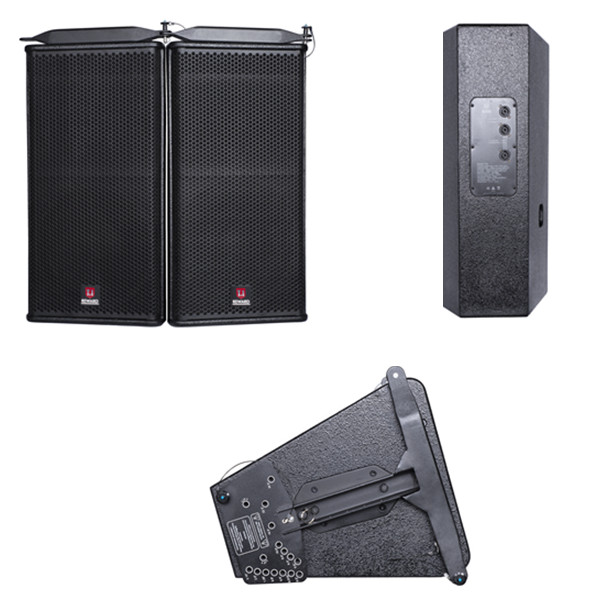

12'' Column System Multi Use Line Array Active System indoor evening party shows stages Images
|
