High performance Sound+ dual 12 inch+ line array

Place of Origin : China

Brand Name : T.I Reward

Certification : CE,RoHS

Model Number : LA-212

Price : 100-10000$

Packaging Details : good quality carton box or flightcase

Delivery Time : 3-15 days upon receipt deposit

Payment Terms : T/T,Western union

Supply Ability : 10000 pieces per month

MOQ : 2 pieces

Contact Now

LA-212 is a 3 way Quart-amplification module for line array system. Reproduction for low frequency is handled by two 12" woofer speakers and a 10’’woofer. High frequency is assigned to pairs of compression driver, which utilizes two 3" Neodymium compression drivers with titanium diaphragm. The driver is coupled with an acrylic wave adaptor, which allows an even wave performance. The dual phase adaptors design is another unique technology, which leads to high flux density and to enhancement of sound pressure.
Durable painting makes the system suitable for different venues – indoor or outdoor. And provides protection against bump and abrasion during the touring performance. It's also equipped with dolly for easy flying. Integrated hanging hardware provides for splay angles from 0°to 7.5°with an increment of 1.5°, providing a seamless array.

Model	LA-212
Frequency Response	60Hz－20kHz ± 3dB
Power handling	LF 2×600W (RMS) 2×1200W (PEAK)
	MF 300W (RMS) 600W (PEAK)
	HF 160W (RMS) 320W (PEAK)
Sensitivity	LF 102dB(1W@1M)
	MF 105dB(1W@1M)
	HF 111dB(1W1M)
MaxS.P.L.	LF 133dB(PEAK/1M)
	MF 130dB(PEAK/1M)
	HF 133dB(PEAK/1M)
LF section	2×12"(310mm) neodymium woofer
	75mm(3in)coil
Nominal impedance	8 ohm
MF section	10"(260mm) neodymium MID
	65mm(2.5in)coil
Nominal impedance	8 ohm
HF section	2×3＂neodymium compression driver with
	75mm titanium diaphragm
Nominal impedance	8 ohm
Dispersion(H x V)	110°H×8°V
Speaker cables	LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)
Input connectors	2×NL8MP speakon

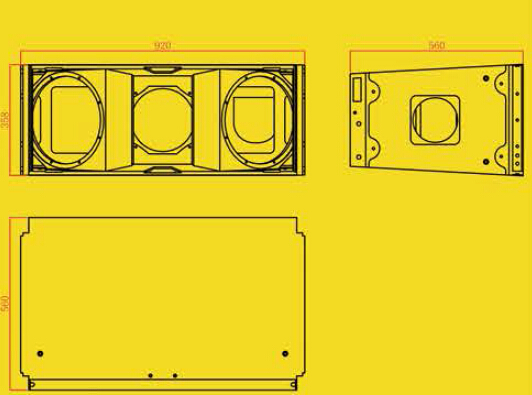

Dimensions	920×362×560mm(W×H×D)
Package dimensions	990×430×630mm/0.27cbm
Enclosure	Birch Plywood
Net weight	49kg
Gross weight	52kg

Features:
◆ DUAL 12’’ and a 10’’ woofer in bass reflex enclosure
◆ 2x 3’’Neodymium compression drivers with perfectly aligned waveguides
◆Power: LF 2×600W (RMS) 2×1200W (PEAK)+MF 300W (RMS) 600W (PEAK)+ HF 160W (RMS) 320W (PEAK)
◆ Dual wave adaptor designed providing ideal SPL and dynamic sound
◆ Quality NL8 professional connectors applied ensuring a direct and stable signal transmission
◆ 110°H×10°V degree wide dispersion designed
◆ High sensitivity and Transparent sound quality
◆ Very small housing and lightweight designed,
◆ Innovative hanging sections for easy hanging and installation
Applications:
Medium-large scale venues including stadium, concert hall, auditorium, theatre, Music Halls, Night clubs, Large Discotheques, touring show, rental market etc.
